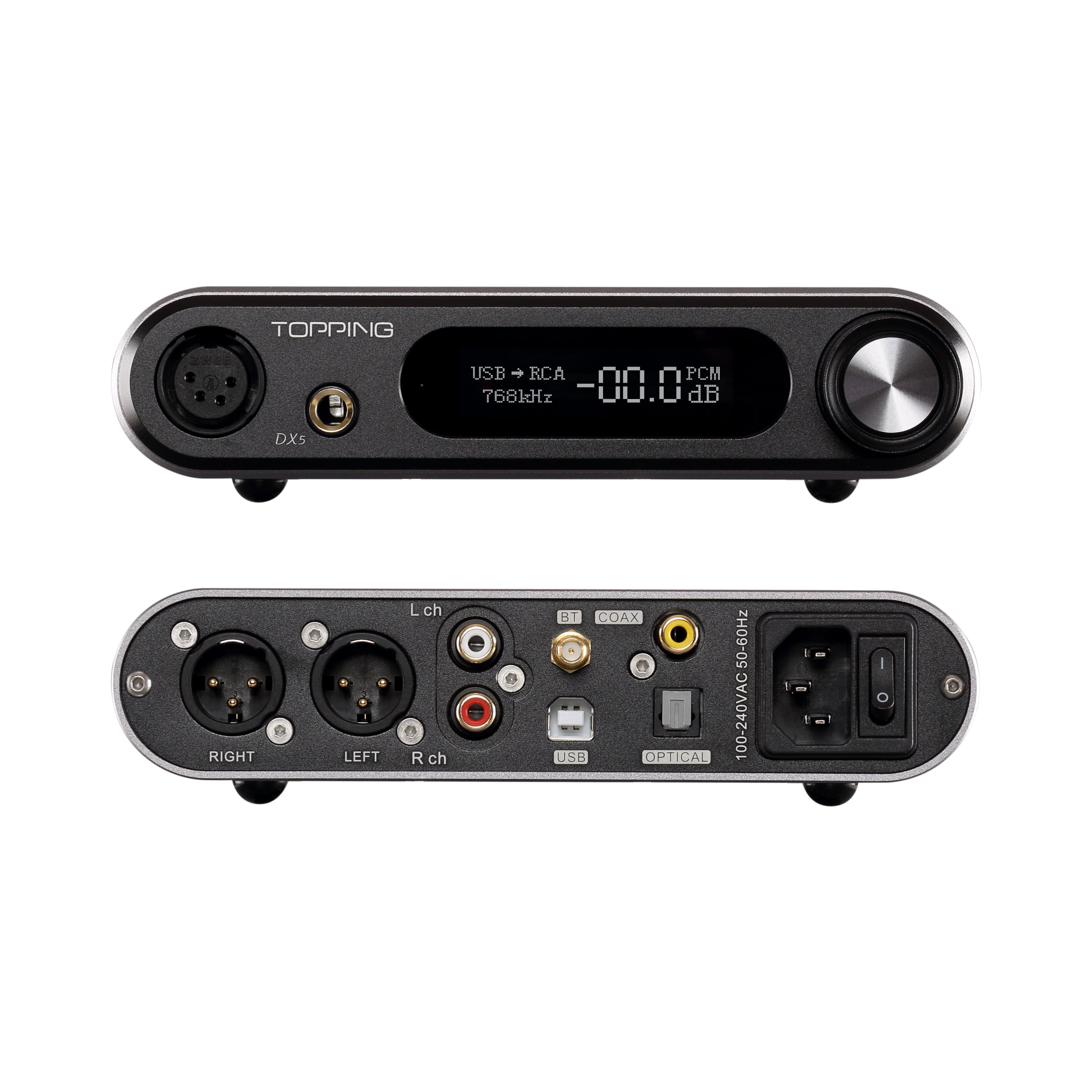

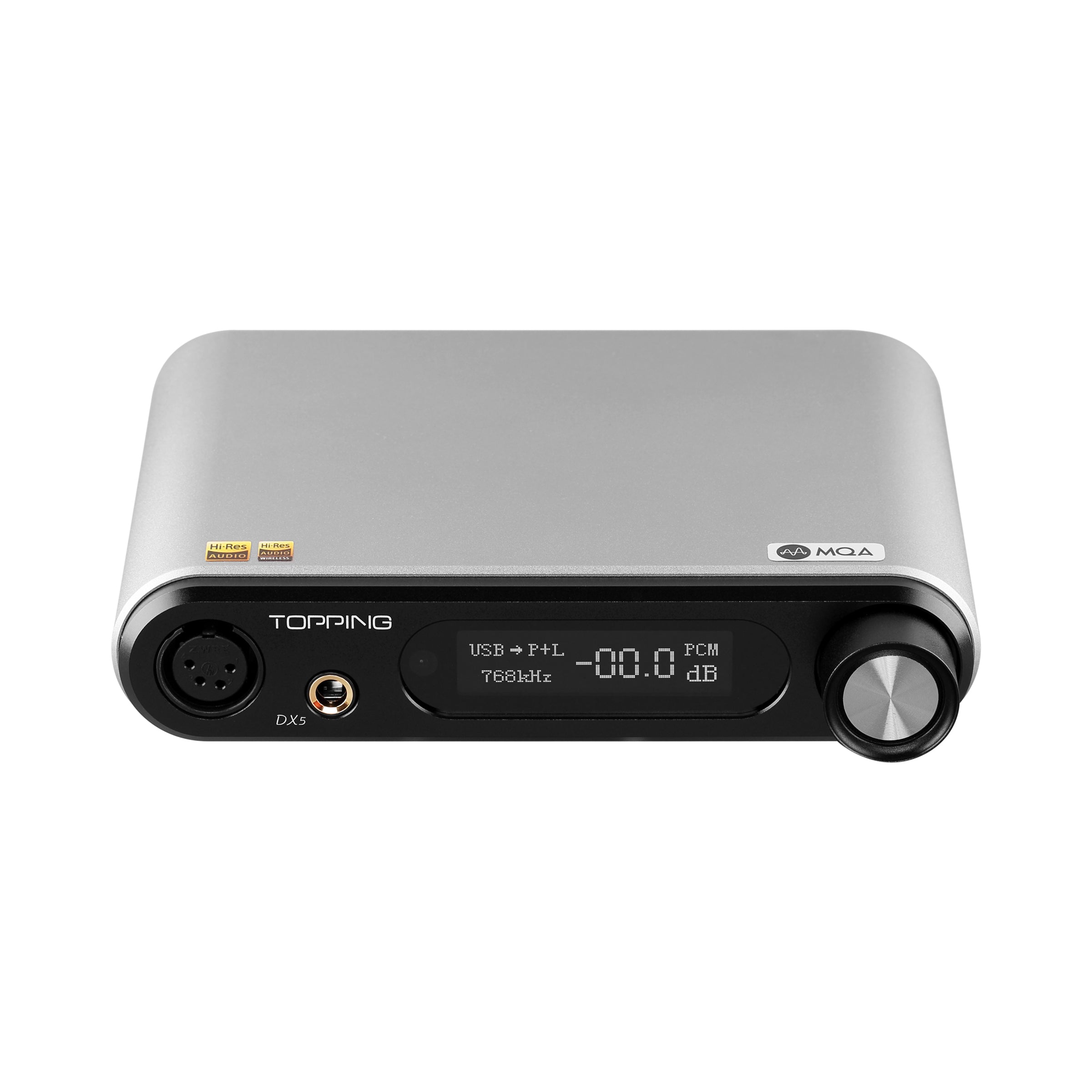

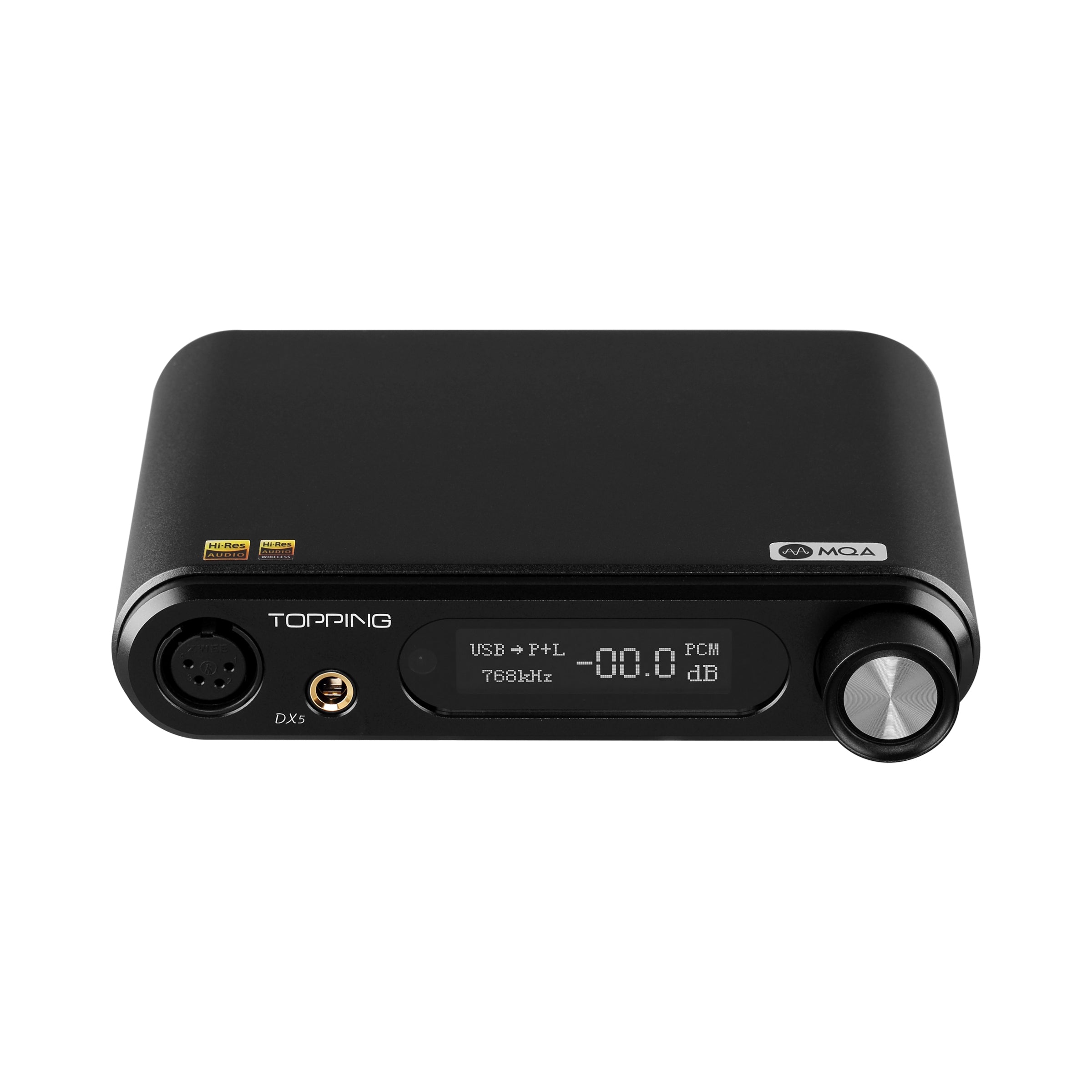

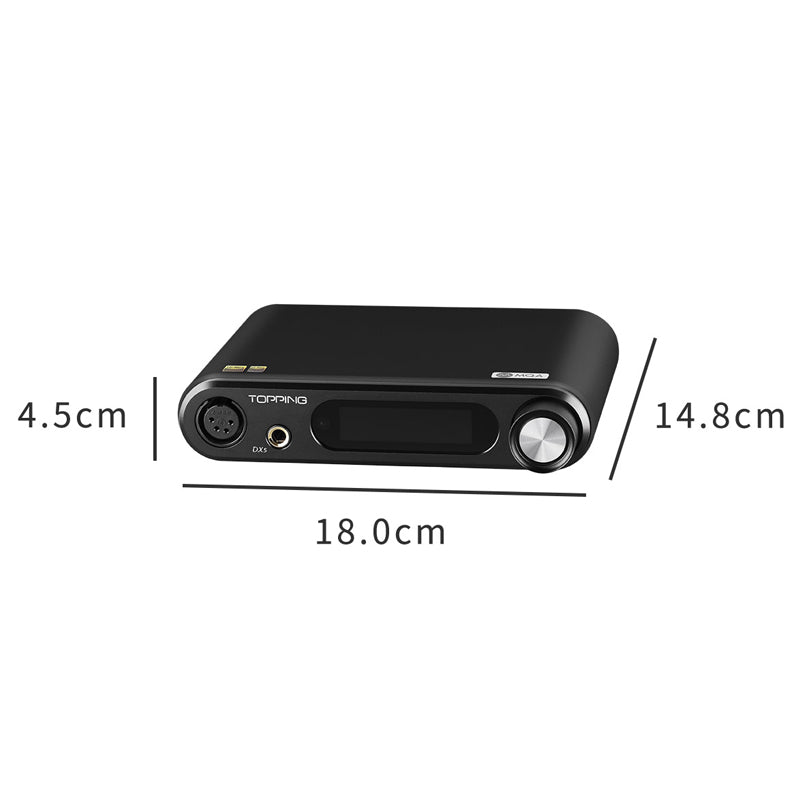

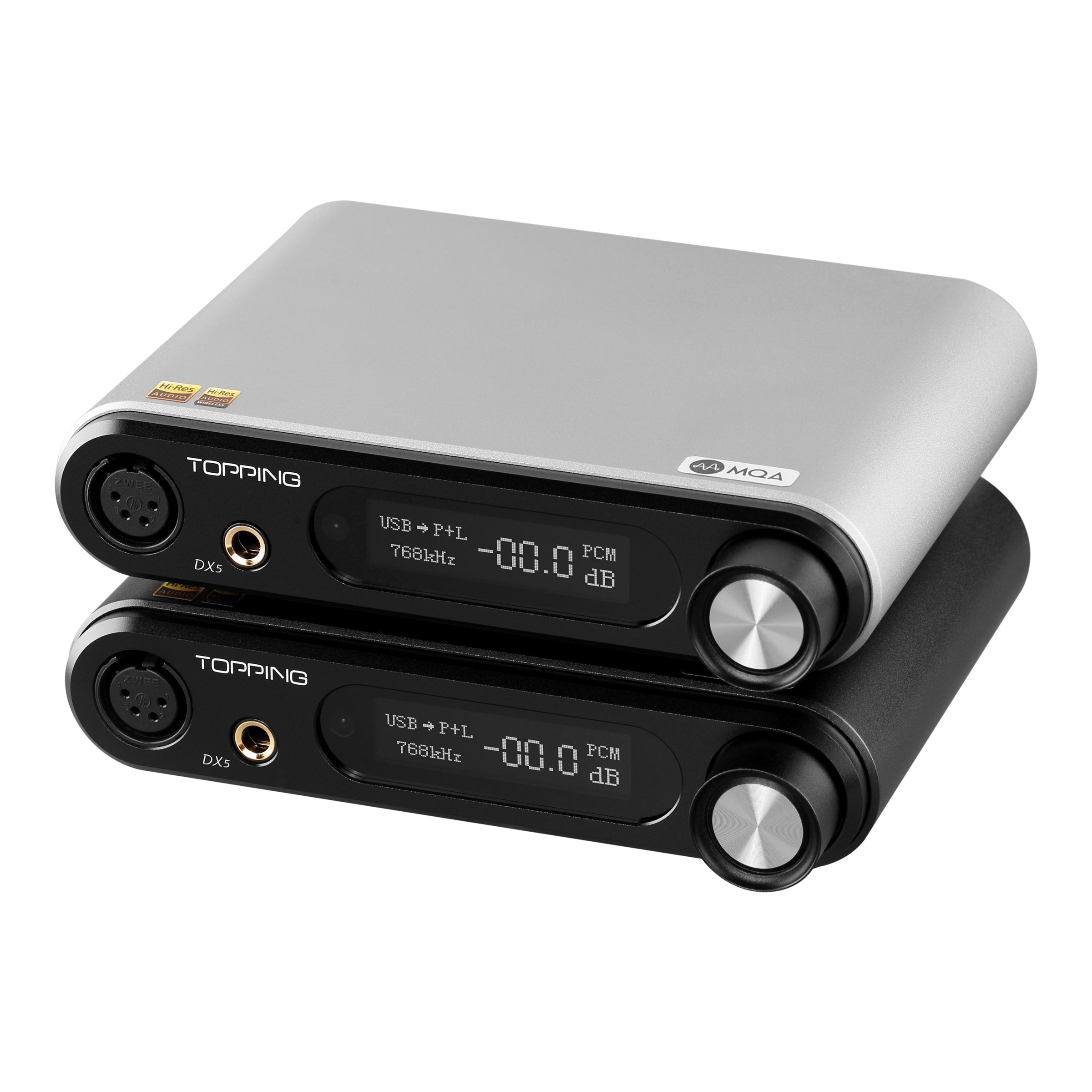

TOPPING DX5 Dual ES9068AS MQA Desktop DAC & Headphone Amplifier - High-Resolution Audio for Home Studio, Gaming, and Music Listening

>Premium Dual DAC Chipset housing dual ES9068AS DAC Chips.

>2nd Gen XMOS XU216 USB Processor.

>Supports High-Res audio signal decoding(32-Bit/768kHz PCM).

>Native DSD512 decoding.

>Built-in NFCA Headphone Amplification Circuit.

>Supports Hi-Res Bluetooth input(LDAC), Digital Inputs(Coax+Optical).

>Dual gain levels.

>Multiple output modes(Headphone AMP, Headphone AMP+Line-Out, DAC, & Pre-AMP.

Decoding Parameters:-

>USB: 32-Bit/768kHz PCM, DSD512 Native, DSD256(DoP), Full MQA decoding.

>Opt/Coax: 24-Bit/192kHz PCM, DSD64(DoP), Full MQA decoding.

>BT: AAC, SBC, APTX, APTX LL, APTX HD, LDAC.

RCA Parameters:-

>THD+N(A-Weighted): <0.00010%.

>THD@20Hz-20kHz: <0.0005%.

>SNR@1kHz: 125dB.

>Dynamic Range: 125dB.

>Frequency Response: 20Hz-20kHz(±0.1dB), 20Hz-40kHz(±0.3dB).

>Output Level: 2.1Vrms@0dBFS.

>Noise@A-weighted: <1.5uVrms.

>Channel Cross talk: -130dB.

>Channel Balance: 0.3dB.

>Output Impedance: 50Ω.

XLR Parameters:-

>THD+N(A-Weighted): <0.0009%.

>THD@20Hz-20kHz: <0.0002%.

>SNR@1kHz: 128dB.

>Dynamic Range: 128dB.

>Frequency Response: 20Hz-20kHz(±0.1dB), 20Hz-40kHz(±0.3dB).

>Output Level: 4.2Vrms@0dBFS.

>Noise@A-weighted: <2.0uVrms.

>Channel Cross talk: -140dB.

>Channel Balance: 0.3dB.

>Output Impedance: 50Ω.

Output Parameters:-

>THD+N(A-Weighted): <0.00010%@32Ω.

>SNR: 125dB.

>DNR: 125dB.

>Output Level: 6Vpp(Low gain), 25Vpp(High gain).

>Noise@A-weighted: <1.7uVrms(low gain), <5.5uVrms(High-gain).

>Channel Cross talk: -114dB.

>Output Impedance: <0.1Ω.

>Output Power: 1800mWx2@32Ω, 1000mWx2@64Ω, 250mWx2@300Ω.

>Load Impedance: >8Ω.

 DX5 is the latest all-in-one USB DAC/AMP from Topping designed with top-quality audio components and accessories for a true high-resolution experience. It fills the gap between the DX3 Pro and the DX7 Pro DAC/AMPs with a premium dual DAC chipset(dual ES9068AS chips) that is tuned to deliver an impeccable sound experience for the users. The DX5 supports a variety of connection options including USB, Bluetooth, and Optical/Coaxial Digital inputs. Topping DX5 is a standalone device that provides exceptional performance with MQA and other high-res signal decoding support straight out of the box!!!

Premium Dual DAC Chipset From ESS Sabre Technologies:-

Topping has designed the DX5 with a dual DAC chipset from ESS Sabre Technologies. They have opted for flagship-grade ES9068AS DAC chips that have been adjusted to deliver top-quality performance while decoding Hi-Res signals. DX5 achieves ultra-low THD+N and high SNR ratings, ensuring a true Hi-Res experience for the users.

Built-In NFCA Circuit:-

Topping has featured its NFCA headphone amplification circuit on the DX5. With this specially-designed NFCA amplification circuitry, the DX5 provides you with enough juice to drive even demanding headphones with ease. DX5 can handle high impedance loads of 600Ω easily.

Master-Quality Authenticated:-

Topping DX5 is an MQA(Master-Quality Authenticated) device that supports full MQA decoding across different inputs including USB and Coaxial+Optical inputs.

Multiple Operation Modes:-

One can use the Topping DX5 in different modes based on their usage preferences. It supports DAC-only mode providing line-out to a dedicated amp in your chain, or you can use its headphone amplifier too, or you can simply use both. You can also use it to give line-out at the same time from both RCA and XLR ports. All these modes are easily accessible and can also be switched using the remote control.
