TOPPING D10 Balanced USB DAC - High Resolution Digital Audio Converter for Home & Studio Use | Perfect for Audiophiles & Music Producers

Product Description

Features:-

>High-Performance ES9038Q2M ESS Sabre DAC Chip.

>XMOS XU208 USB Processor.

>PCM Decoding up to 32-Bit/384kHz.

>Native DSD256 Decoding.

>THD+N: 0.00012%.

>Balanced TRS Line-Out.

>Digital Coaxial & Optical Output.

>Customised Windows ASIO Drivers.

Technical Parameters:-

>USB In(Plug & Play).

>Line-Out: 6.35mm TRS(No Single-Ended Output).

>THD+N@1kHz A-weighted: <0.00012%.

>THD: <0.00015% @ 20Hz-20kHz.

>SNR: 125dB.

>Dynamic Range: 125dB.

>Frequency Response: 20Hz-20kHz.

>Output Level: 4.2Vrms@0dBFS.

>Noise: <2.4uVrms.

>Channel Crosstalk: -141dB.

>Channel Balance: 0.3dB.

>Output Impedance: 88 ohm.

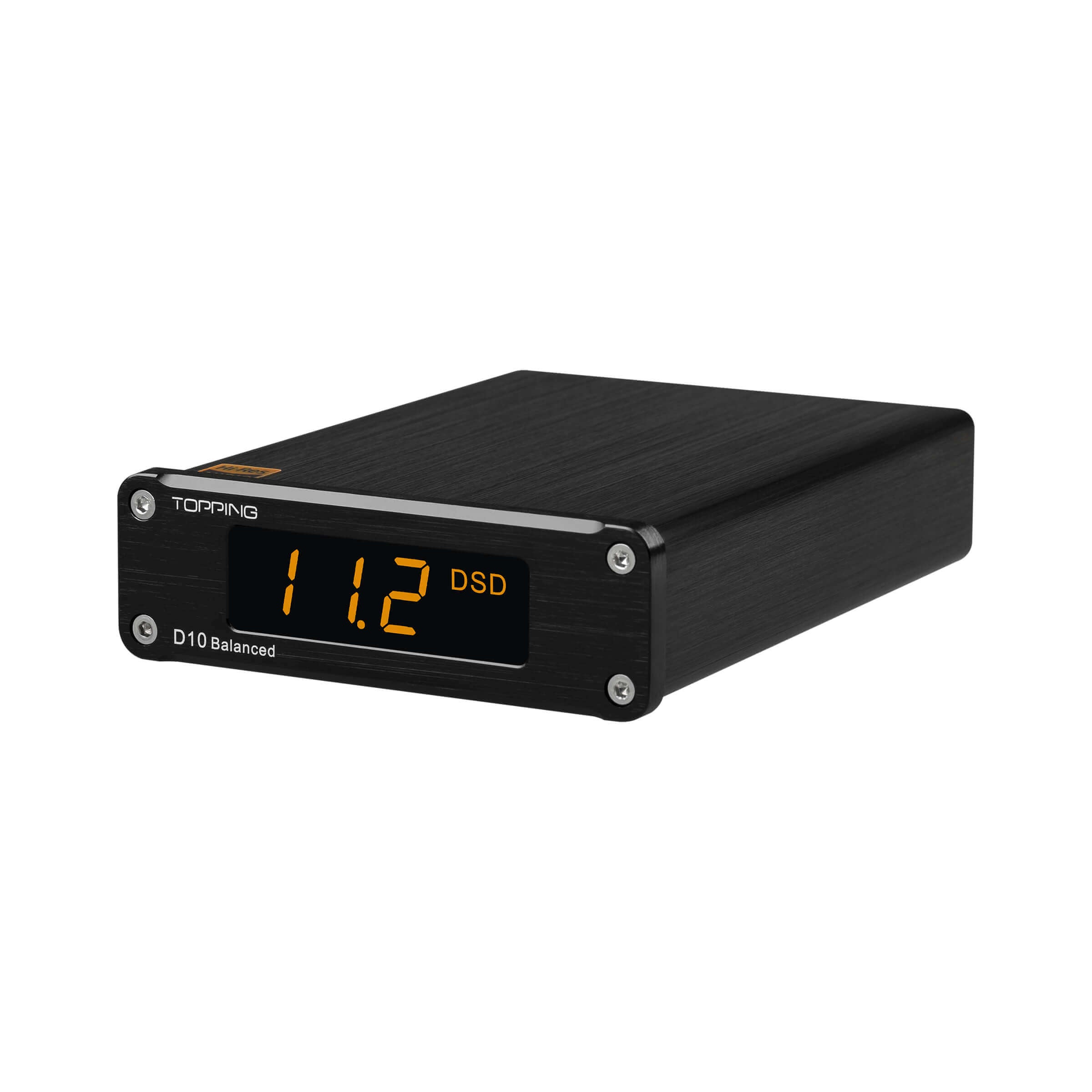

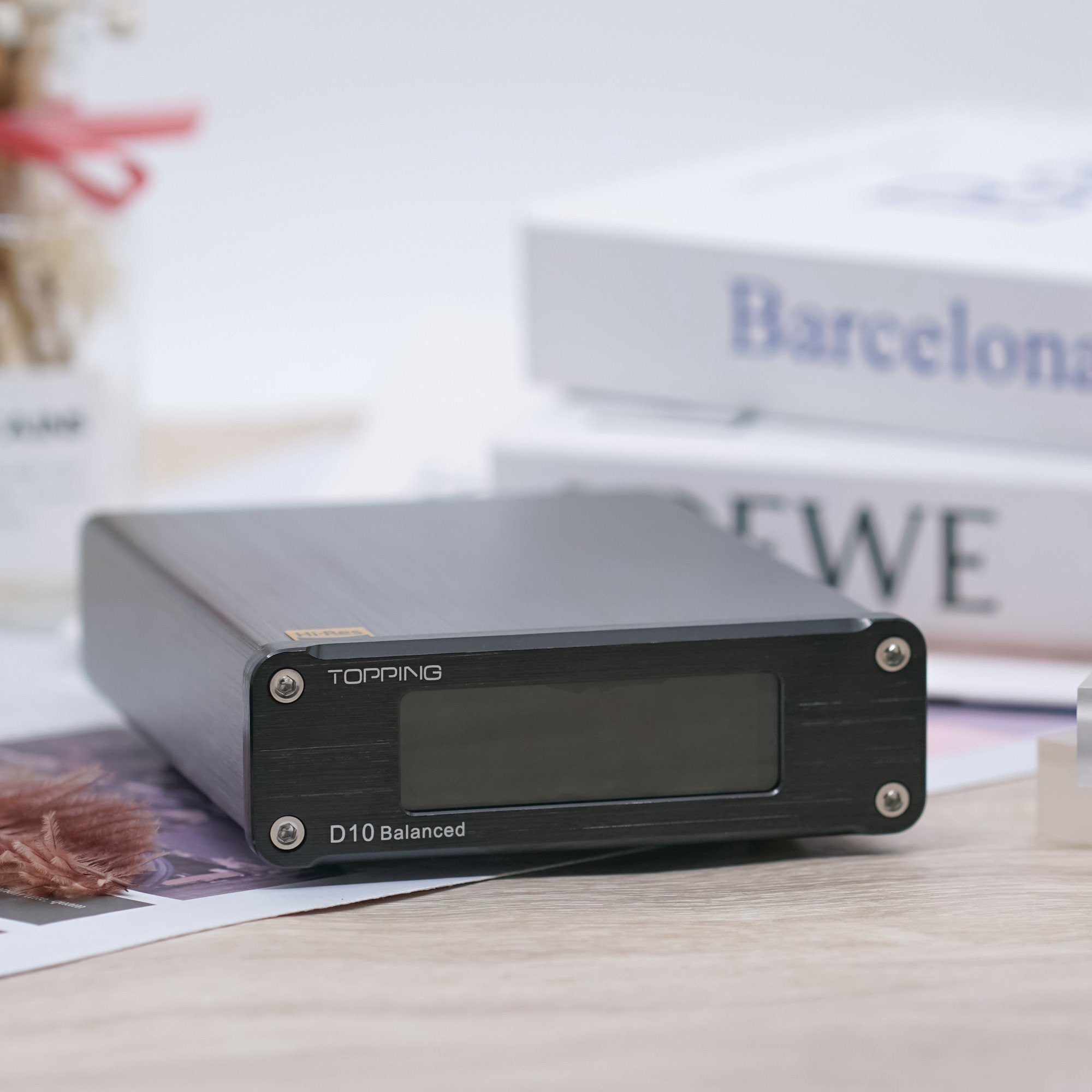

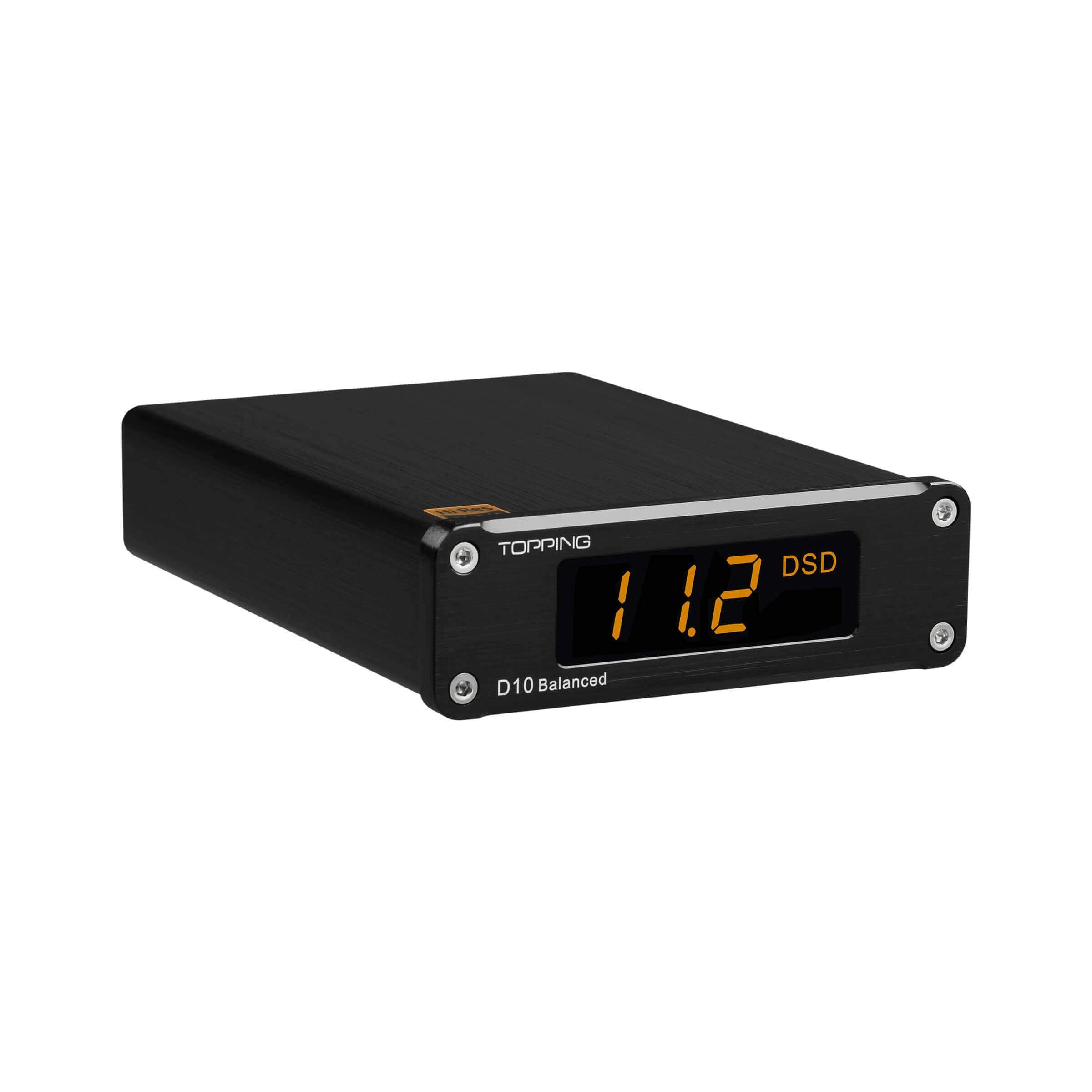

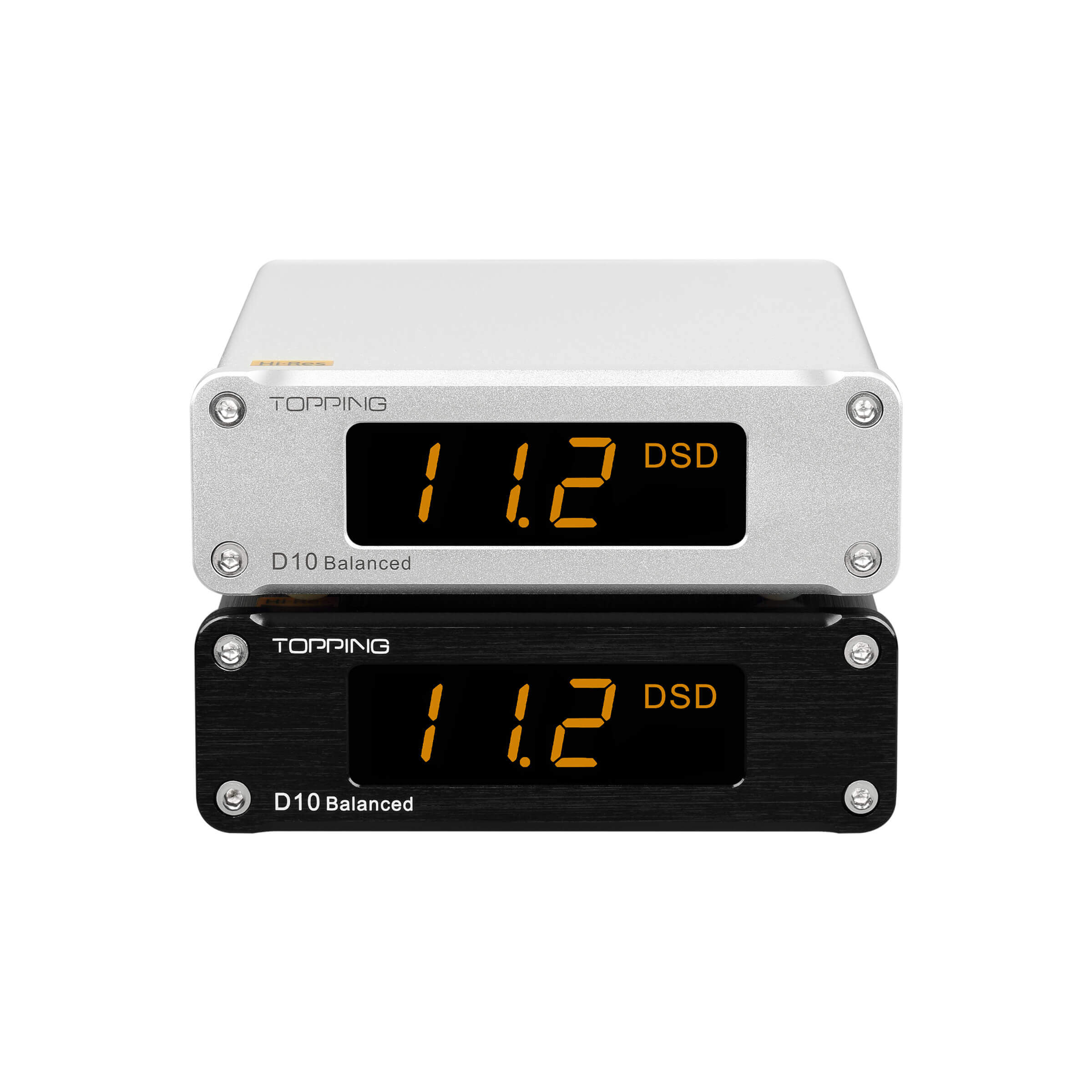

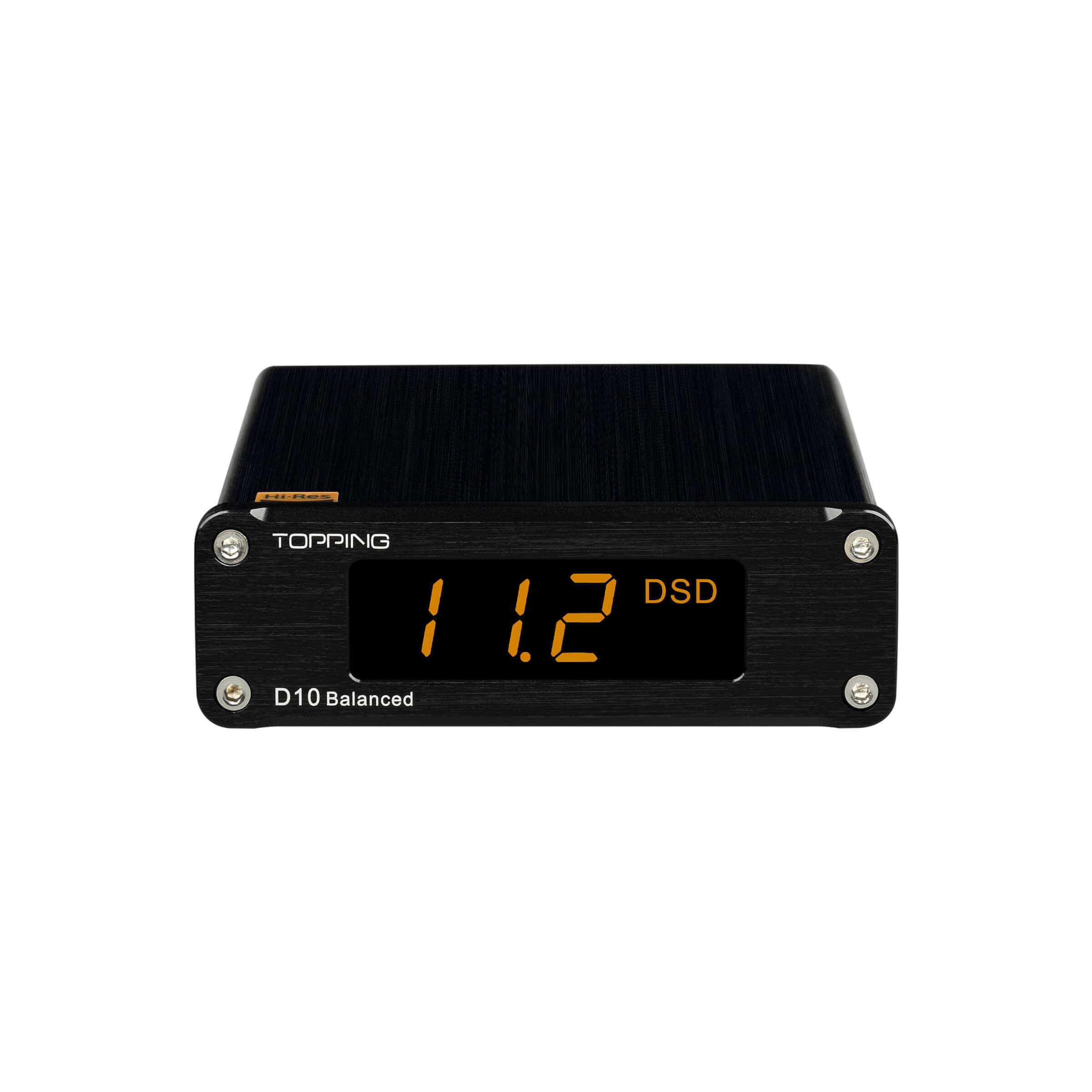

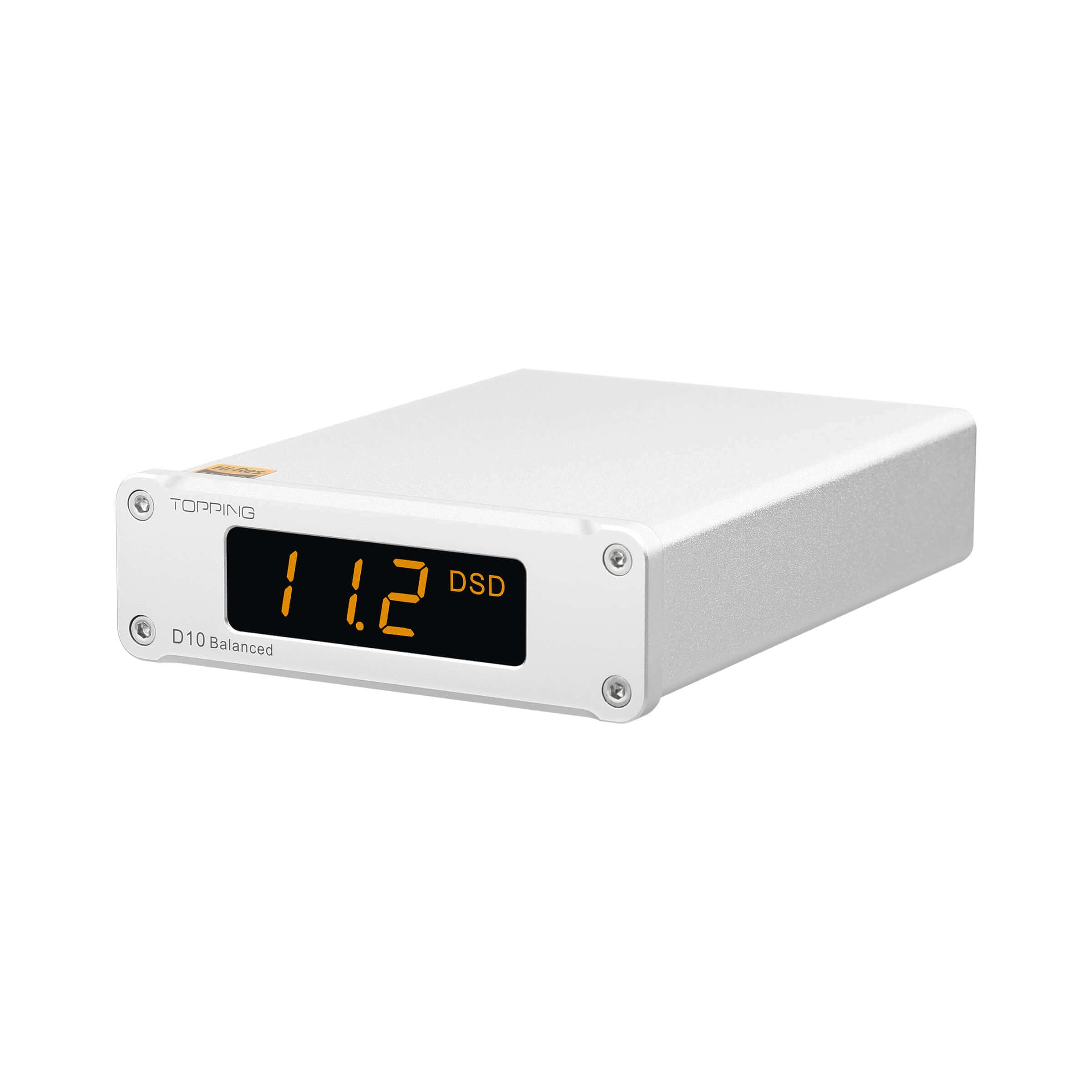

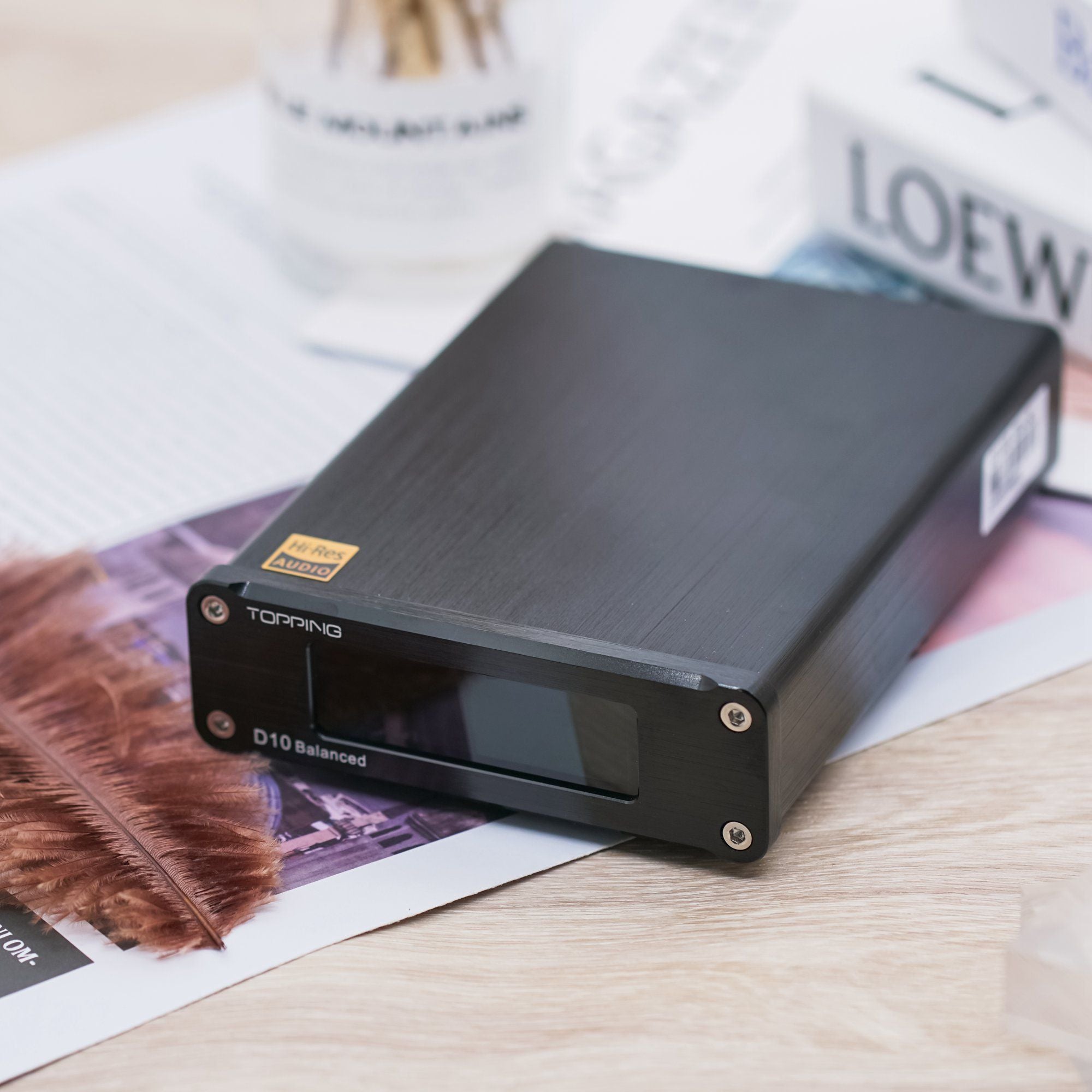

Topping D10B, also known as Topping D10 Balanced is a high-resolution desktop USB DAC with a balanced line-out option. Based on the compact design of the famous D10s desktop DAC, the D10B features an ES9038Q2M high-performance DAC chip that helps the device to achieve ultra-low distortion while decoding high-resolution audio signals. Add the D10B to your balanced amplifiers and make a fully balanced Headphone/Speaker setup.

Your Trusted D10 With Balanced Output Now:-

Topping D10 series of USB DACs have always been the talk of the town for their excellent performance. The latest D10B follows that path but this time bringing us a balanced connection. It has a fully balanced TRS line-out option that can also be used to get a 3-Pin XLR line-out via the included adapters. Please note, D10B doesn't support single-ended output even with adapters.

Bring The Power Of High-Performance SABRE DAC Now:-

Topping D10B features a widely trusted ES9038Q2M DAC chip from ESS Sabre Technologies. It provides ultimate high-resolution audio signal decoding performance with a clean, noise-free sound signal decoding. It helps the D10B achieve high-class performance with ultra-low distortion and high SNR ratings. Topping D10B achieves an ultra-low distortion rating of just 0.00012%.

XMOS Latest USB Processor:-

Topping D10B is equipped with the latest-gen XU208 XMOS USB signal receiver that allows high-resolution signal decoding via USB connection. It supports PCM decoding up to 32Bit/384kHz and DSD up to DSD256 natively. Topping has developed a customized ASIO driver for the Windows system to unlock the full potential of D10B.

Automatic On/Off Feature With USB Source:-

Topping D10B doesn’t need any external power adapters. It takes the required power through the connected USB source as it has very low power requirements. It automatically turns on/off whenever you turn your PC on or off.
